There is no single universal "standard door width." The correct width depends on the room type, the regional building convention, accessibility requirements, and whether the dimension refers to the door leaf, door frame, clear opening, or rough opening.

Read time — 12 min
Units — mm & inches
Scope — Residential & project-scale

In most residential projects, common interior door leaf widths typically range from 24–36 inches (610–914 mm). But that number alone is not enough for specification or construction. A door frame is wider than the leaf, a clear opening is narrower than the leaf, and a rough opening is larger than the complete door unit to allow for installation and adjustment.

This guide explains the difference clearly, provides a practical door width chart, and shows how width, frame size, and opening size work together for real projects.

Closet / utility door — 24 in / 610 mm
Bathroom door — 28–30 in / 710–760 mm
Bedroom door — 30–32 in / 760–810 mm
Main passage door — 32–36 in / 810–915 mm
Entry door — 36 in / 915 mm

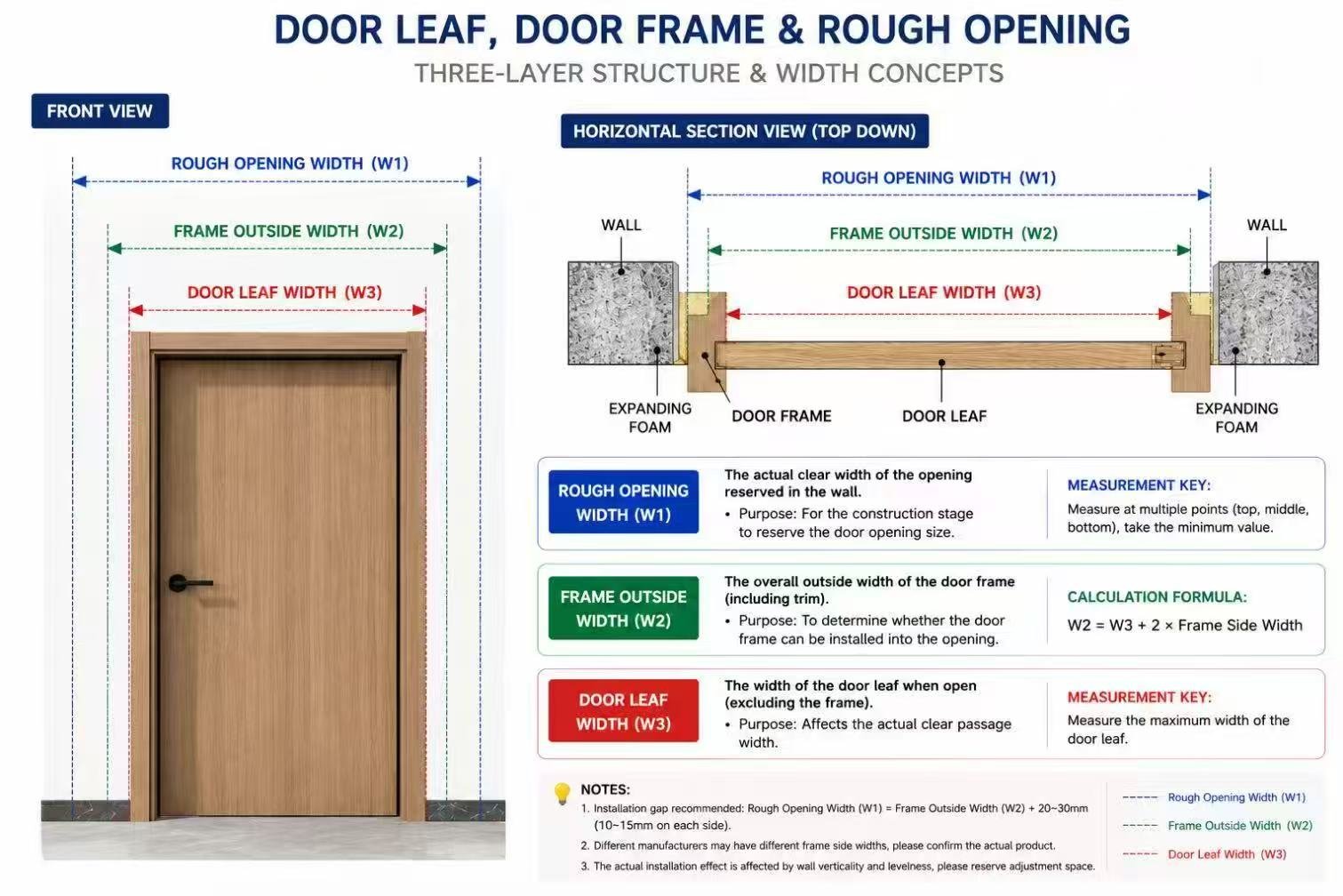

What Is the Difference Between Door Width, Door Frame Width, Clear Opening and Rough Opening?

This is the most important distinction in door measurement.

1) Door Leaf Width

The door leaf is the movable panel itself. When a catalogue lists a door as 30 inches, 32 inches, or 36 inches, it is usually referring to the leaf width.

2) Door Frame Width

The door frame width is the overall outside width of the installed frame system. It is larger than the leaf because it includes the jambs and frame structure around the panel.

3) Clear Opening

The clear opening is the usable passage width after installation. It is smaller than the door leaf width because the frame, stop, and hinge arrangement reduce the clear passage.

4) Rough Opening

The rough opening is the wall opening prepared before the door frame is installed. It must be larger than the frame to allow for shimming, alignment, and adjustment during installation.

Simple rule — clear opening < door leaf width; door frame width > door leaf width; rough opening > door frame width. A 900mm door leaf does not require a 900mm rough opening — the wall opening must be larger than the leaf to accommodate the frame and installation allowance.

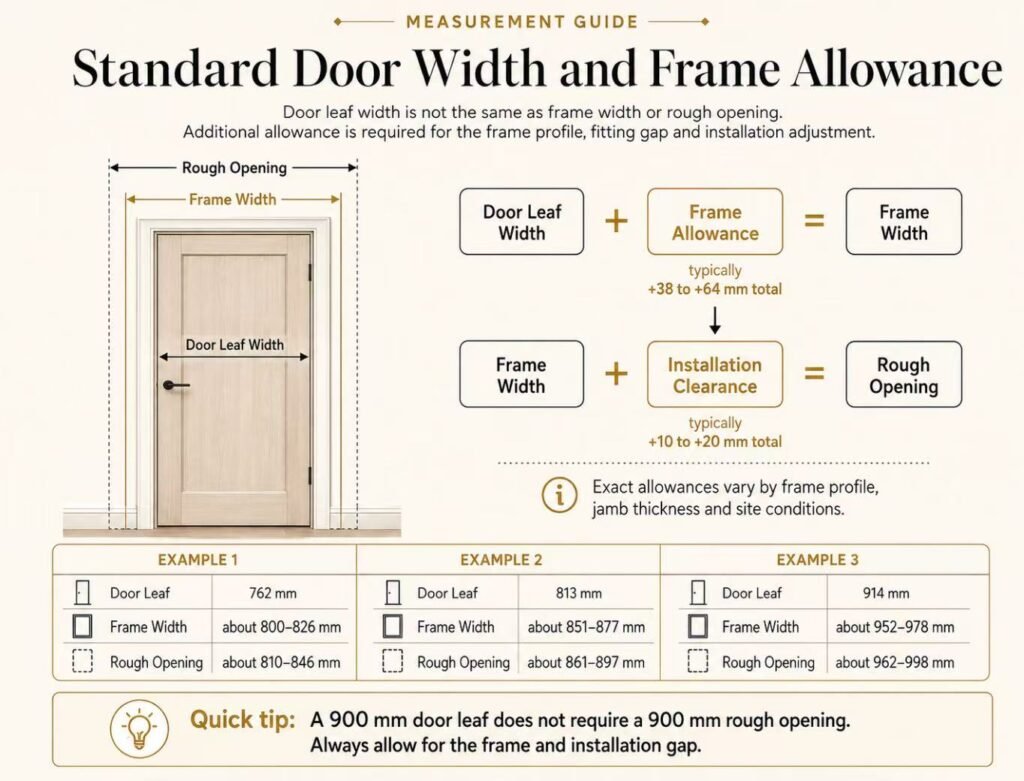

Standard Door Width and Frame Allowance Chart

The table below helps connect the door leaf width to the likely frame width and rough opening.

Door leaf width vs. frame and rough opening allowance
Door leaf (in)	Door leaf (mm)	Approx. frame allowance	Approx. overall frame width	Approx. rough opening
24 in	610 mm	+1.5–2.5 in / 38–65mm	648–675mm	660–700mm
28 in	711 mm	+1.5–2.5 in / 38–65mm	749–776mm	760–800mm
30 in	762 mm	+1.5–2.5 in / 38–65mm	800–827mm	810–850mm
32 in	813 mm	+1.5–2.5 in / 38–65mm	851–878mm	860–900mm
36 in	914 mm	+1.5–2.5 in / 38–65mm	952–979mm	965–1005mm

Notes: exact frame allowances vary by frame system, stop design, hinge arrangement, and manufacturer. Rough opening width depends on the door set, wall condition, and installation method. Always confirm final production dimensions from approved shop drawings.

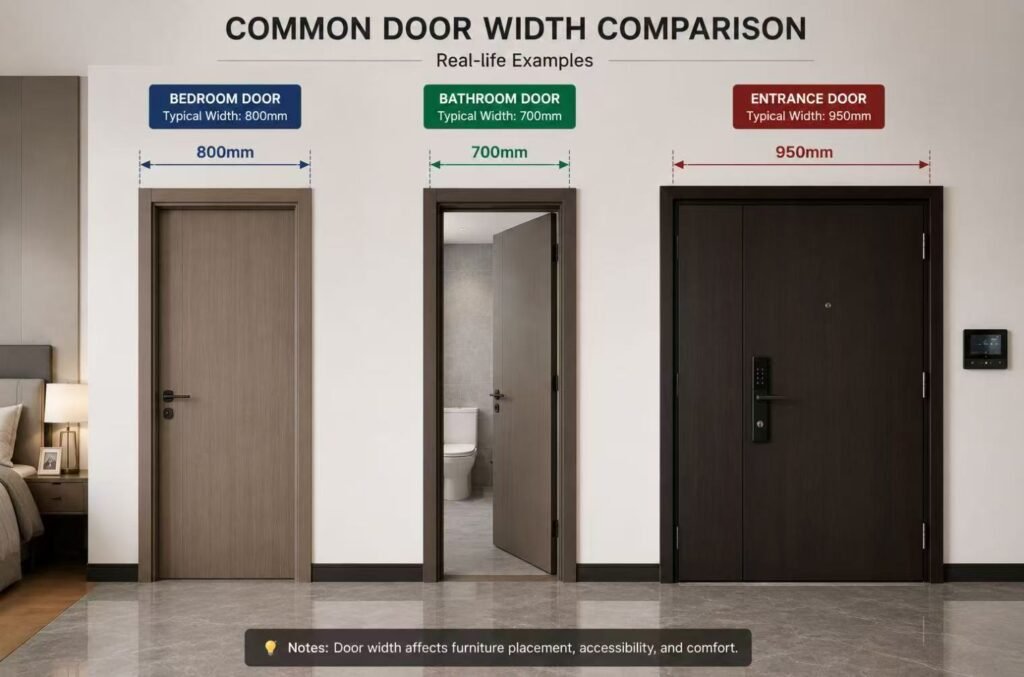

Average Standard Door Width by Room Type

Different rooms use different width conventions because traffic, privacy, furniture movement, and accessibility needs are different.

Door width by room type
Room / Application	Common leaf width	Metric	Approx. clear opening
Closet / Utility	24 in	610mm	~22 in / 560mm
Bathroom	28–30 in	710–760mm	~26–28 in / 660–710mm
Bedroom	30–32 in	760–810mm	~28–30 in / 710–760mm
Main living area	32–36 in	810–915mm	~30–34 in / 760–860mm
Entry door	36 in	915mm	~34 in / 860mm
Double entry doors	60–72 in combined	1500–1830mm	project-specific

Bedroom Door Width

A standard bedroom door is usually 30–32 inches (760–810mm). This width generally balances everyday circulation, furniture movement, and construction efficiency.

Bathroom Door Width

A standard bathroom door is usually 28–30 inches (710–760mm). Smaller bathrooms may use narrower doors, but accessibility needs can increase the requirement.

Closet and Utility Door Width

Closet and utility doors are often 24 inches (610mm) wide, since these spaces typically have lower traffic and more limited access requirements.

Main Passage and Entry Door Width

Main circulation routes often use 32–36 inches (810–915mm), while a residential entry door commonly uses 36 inches (915mm).

What Is the Standard Door Frame Width?

There is no single fixed “standard door frame width,” because the frame width depends on the door leaf size and the frame construction. In practice, the phrase door frame width may refer to one of two things:

A) Overall Frame Width

This means the outside width of the complete frame system. It is usually the door leaf width plus the jamb structure.

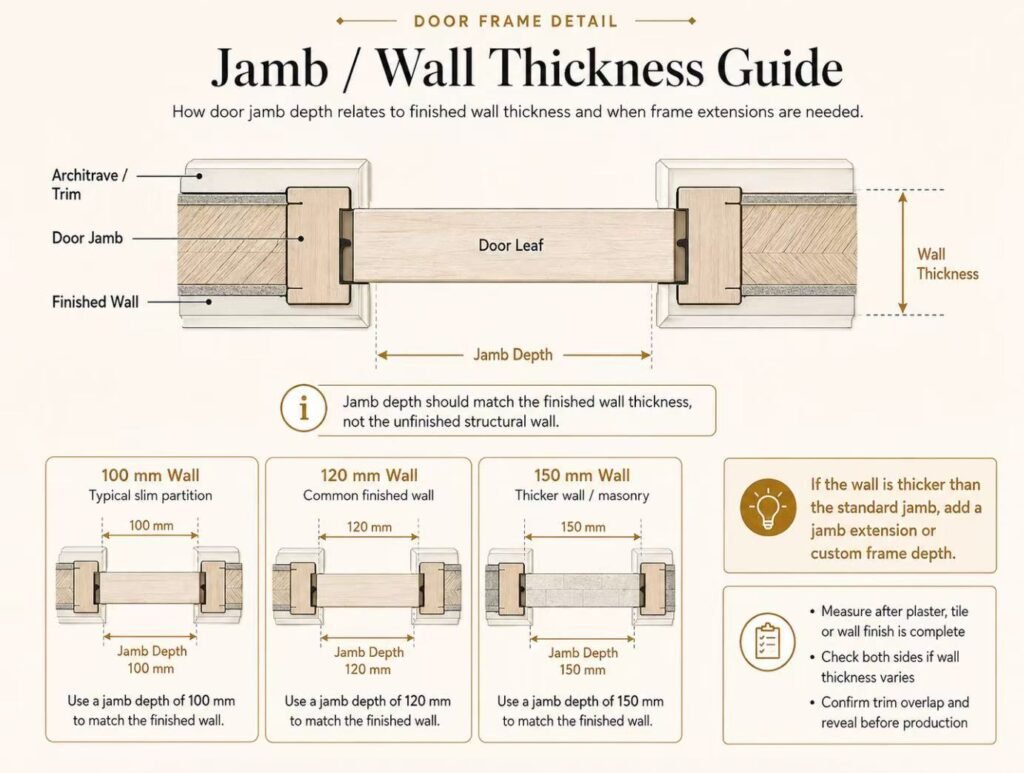

B) Jamb Depth / Frame Thickness Across the Wall

Some users searching for “door frame width” actually mean jamb width or jamb depth. This depends on the wall thickness rather than the door leaf width.

Typical jamb depth by wall type
Wall type	Typical jamb depth
2×4 wall	About 4-9/16 in
2×6 wall	About 6-9/16 in
Masonry / custom wall	Project-specific

This is why “door frame width standard” can never be answered with a single number unless the door leaf size and wall condition are both defined.

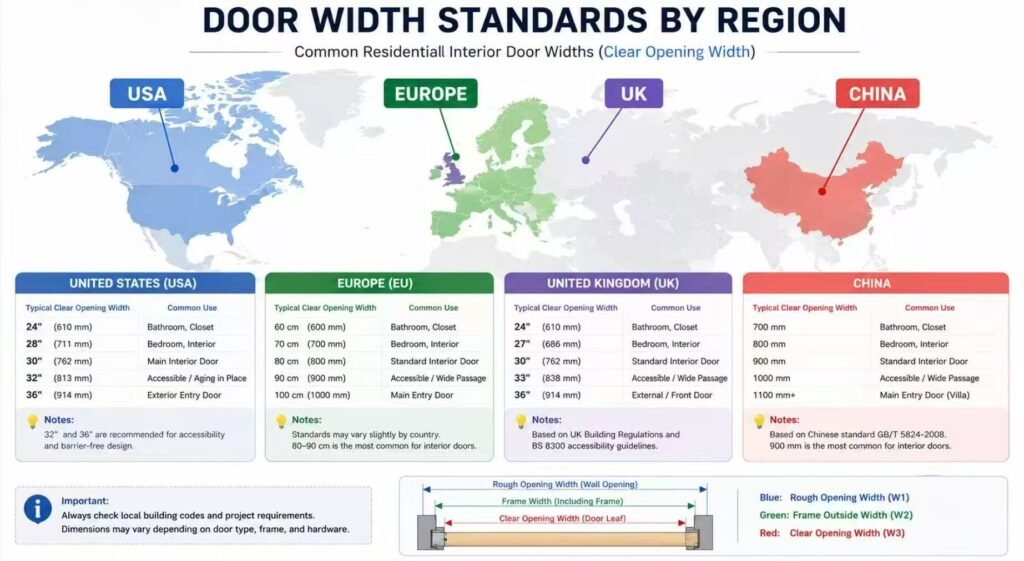

Standard Door Width by Region

A door considered standard in one region may be non-standard in another.

Interior door width by regional standard
Region	Common widths	Most common single size	Height convention
United States	24/28/30/32/36 in	32 in (813mm)	80 in (2032mm)
United Kingdom	610/686/762/838mm	762mm	1981mm
Europe	626/726/826/926mm	826mm	2000–2100mm
China	800/850/900mm	800–900mm	2000–2100mm
Southeast Asia / Middle East projects	Mixed metric practice	Varies by project	Varies by project

Why Regional Standards Matter

A 32-inch US door, a 762mm UK door, and an 826mm European door are all “standard” within their own systems, but they are not interchangeable. For export projects, villas, hospitality developments, and multi-country supply, the width should always be specified with the region or standard system, the measurement type, and the unit. For example: 813mm door leaf width, 860mm clear opening, 900mm rough opening.

Accessibility Requirements: Clear Opening Matters More Than Leaf Width

This is one of the most common mistakes in door specification.

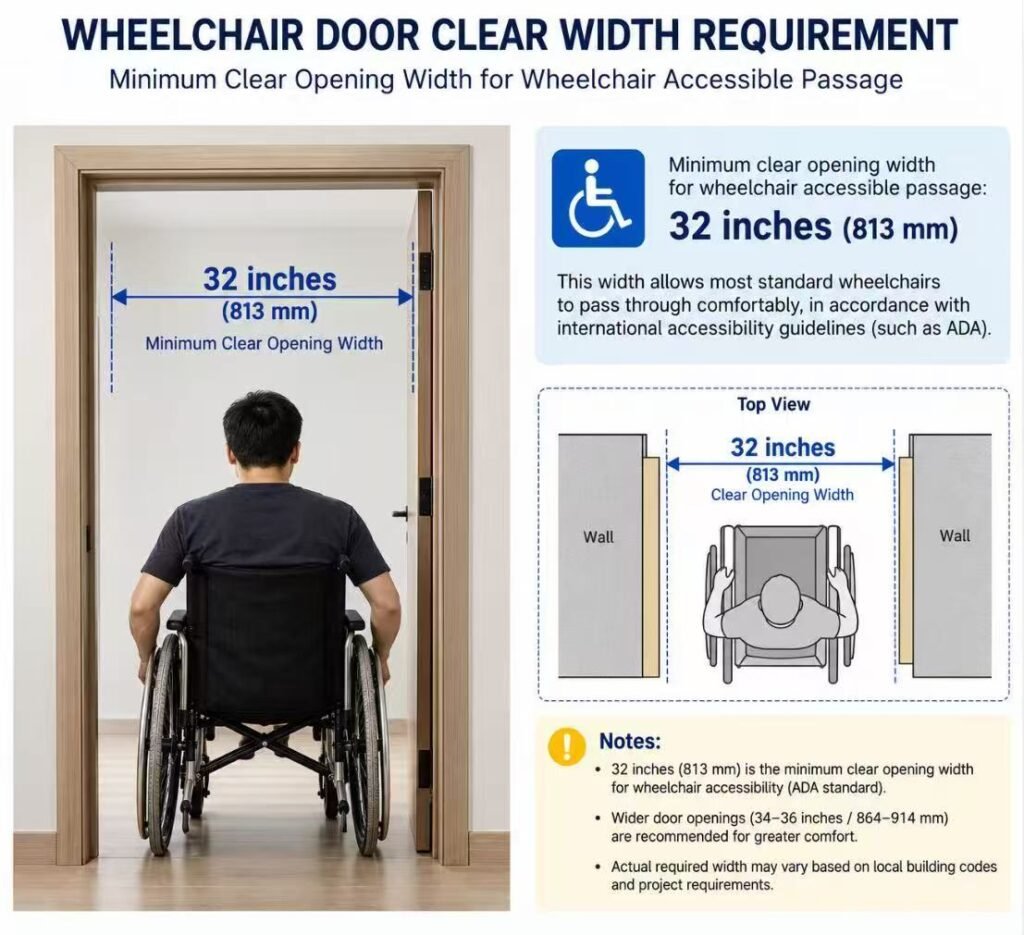

ADA Minimum Clear Width

For accessible doorways in the US, the key requirement is generally the clear opening, not simply the leaf width. A 32-inch door leaf does not usually produce a 32-inch clear opening. That is why a 36-inch leaf is often used where a 32-inch minimum clear opening is required.

UK Part M

In the UK, Part M accessibility compliance also focuses on effective clearance, not just nominal slab size. In practice, a wider door such as 838mm is often used where accessible passage is required.

Key takeaway — a code requirement is usually based on usable opening, not the catalogue width printed for the slab.

How to Measure Door Width Correctly

When measuring for a renovation, replacement, or project supply, use this sequence:

For Existing Doors

Measure the door leaf width
Measure the door leaf height
Measure the frame outside width
Measure the clear opening
Measure the wall thickness / jamb depth

ForFor New Construction

Identify the required clear opening
Select the proper door leaf width
Confirm the matching frame system
Calculate the required rough opening
Lock the dimensions in the approved door schedule

Common mistake to avoid — do not write “900mm standard door” without clarifying whether that means 900mm leaf, 900mm frame, 900mm clear opening, or 900mm rough opening.

Double Door Width: How It Works

Double door widths should never be estimated by simply dividing the wall opening in half.

Opening width
− frame allowance
− fitting tolerance
= combined door leaf width

Combined leaf width ÷ 2 = single leaf width

Other factors that affect the final result: meeting stile type, rebate style, astragal allowance, hinge or pivot hardware, and accessibility clearance requirement. For large entrance doors and project doors, this should always be checked through a door schedule or manufacturer drawing.

When Do You Need a Custom Door Width?

A standard size is not always the best choice. Custom widths are often needed when:

furniture movement requires more clearance
accessibility targets exceed nominal room standards
luxury villas use oversized doors
hospitality projects require consistency across many units
regional standards differ from the sourcing market

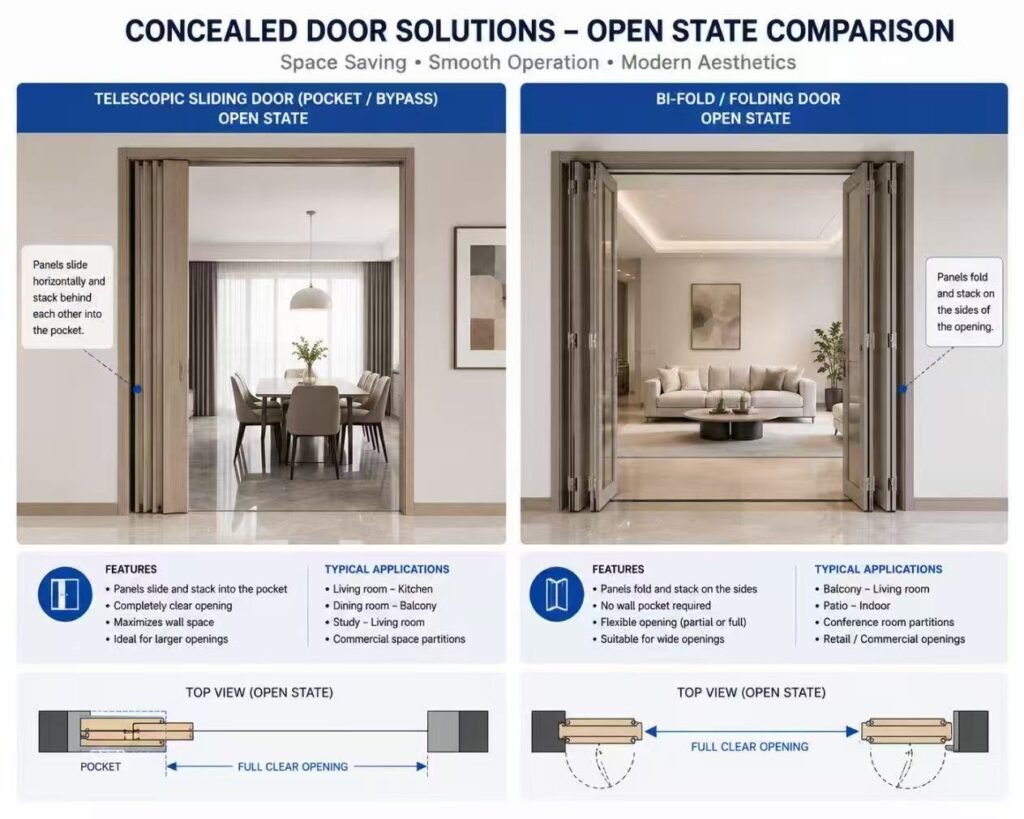

hidden doors, pivot doors, or telescopic systems change the frame logic — see our hidden doors and pivot doors collections

At BoyceCasa, we typically confirm door leaf size, frame size, rough opening, wall condition, hardware preparation, and finish schedule before production begins for project orders.

Practical Specification Example

Instead of writing “Door width: 900mm,” use:

Door leaf width: 900mm
Frame type: standard hinged timber frame
Approx. frame width: confirm by approved shop drawing
Clear opening: confirm after hardware and stop deduction
Rough opening: confirm by installation drawing
Wall thickness / jamb depth: project-specific

This approach prevents confusion between architectural drawings, supply documents, and site installation.

Specifying door widths for a villa or multi-unit project? Send us your door schedule or opening dimensions — we confirm leaf size, frame, and rough opening against your actual wall condition before production.

FAQS

What is the standard width of a door frame?

There is no single fixed standard door frame width. The frame width depends on the door leaf size and frame construction. For residential interior doors, common leaf widths range from 610mm to 914mm, while the overall frame width is larger than the leaf.

What width should a door frame be?

It should match the selected door leaf, the wall thickness, the frame system, and the required clear opening. The right answer depends on the application, not on one universal number.

Is 24 inches a standard door width?

Yes. A 24-inch (610mm) door is commonly used for closets, utility spaces, and some compact secondary rooms.

Is 20 inches a standard door width?

It is less common for standard interior residential use and is usually considered too narrow for many normal applications.

What is the difference between clear opening and rough opening?

The clear opening is the usable passage after installation. The rough opening is the structural wall opening prepared before the frame is installed.

Does a 900mm door need a 900mm rough opening?

No. A 900mm door leaf needs a larger opening because the frame and installation tolerances must also be accommodated.

What is the standard door width in mm?

Common standard door widths in mm include 610, 711, 762, 813, and 914mm, depending on the room type and regional convention.

What is the standard interior door frame width?

It varies by door size and frame type. A standard interior door frame is always wider than the door leaf, and the exact allowance depends on the jamb structure and installation method.

Conclusion

“Standard door width” only sounds simple until a project moves from concept to production. In real specification work, the width number is only useful when it is tied to the correct measurement type.

To avoid mistakes, always separate door leaf width, door frame width, clear opening, and rough opening. Then confirm the regional standard, the room type, and the accessibility requirement before locking the order.
